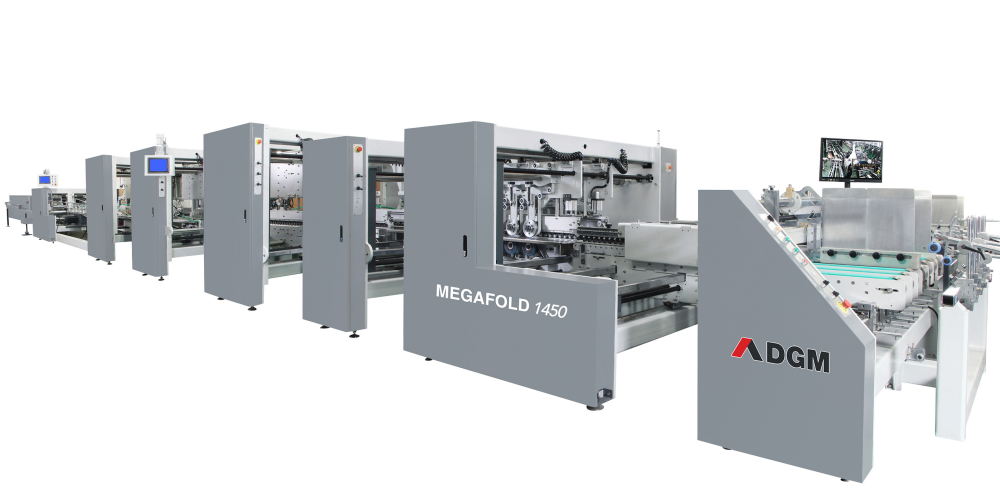

The DGM MegaFold 1450 PC folder gluer operates milk carton crash lock bottom boxes in a continuous inline setup with a maximum mechanical speed of up to 300 m/min. During high-speed production, the machine maintains stable performance and consistent folding accuracy.
This inline MegaFold 1450 PC solution combines stable high-speed performance, enhanced creasing capability, and flexible downstream integration to support efficient production and reliable handling. During the October exhibition, this configuration attracted strong attention from both domestic and international visitors.

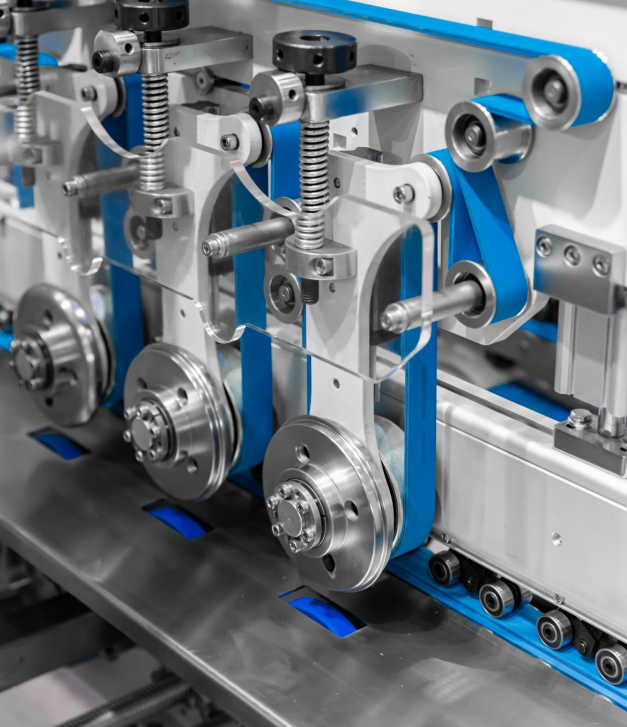

To address unclear creasing lines caused by rotary die-cutting, this configuration integrates a secondary creasing unit before the folding section.
In corrugated packaging applications, rotary die-cutting may result in insufficient or uneven crease definition, which can increase folding resistance and lead to unstable box forming. The secondary creasing unit re-processes the existing crease lines, ensuring clearer, more uniform, and more consistent creasing before the board enters the folder gluer.
By reinforcing crease definition in advance, the folder gluer reduces folding stress during high-speed operation, improves foldability and forming reliability, and helps customers achieve more consistent box quality in daily production.

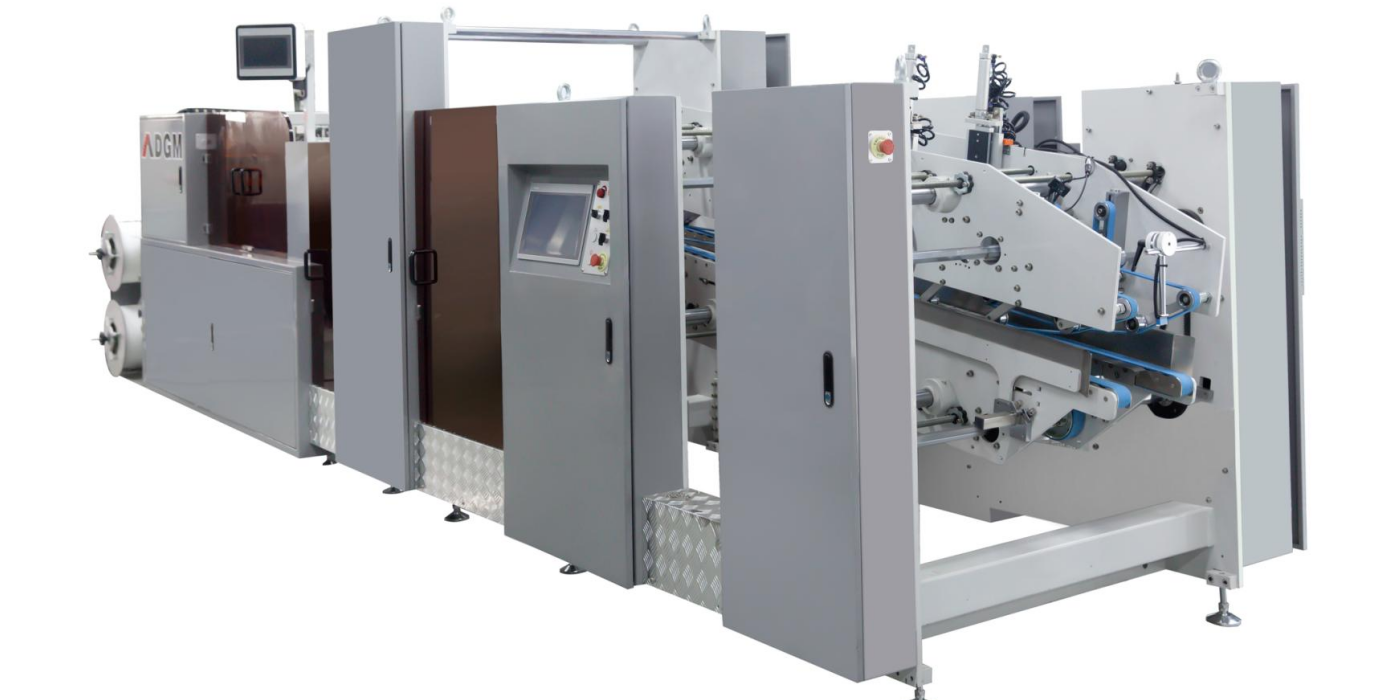

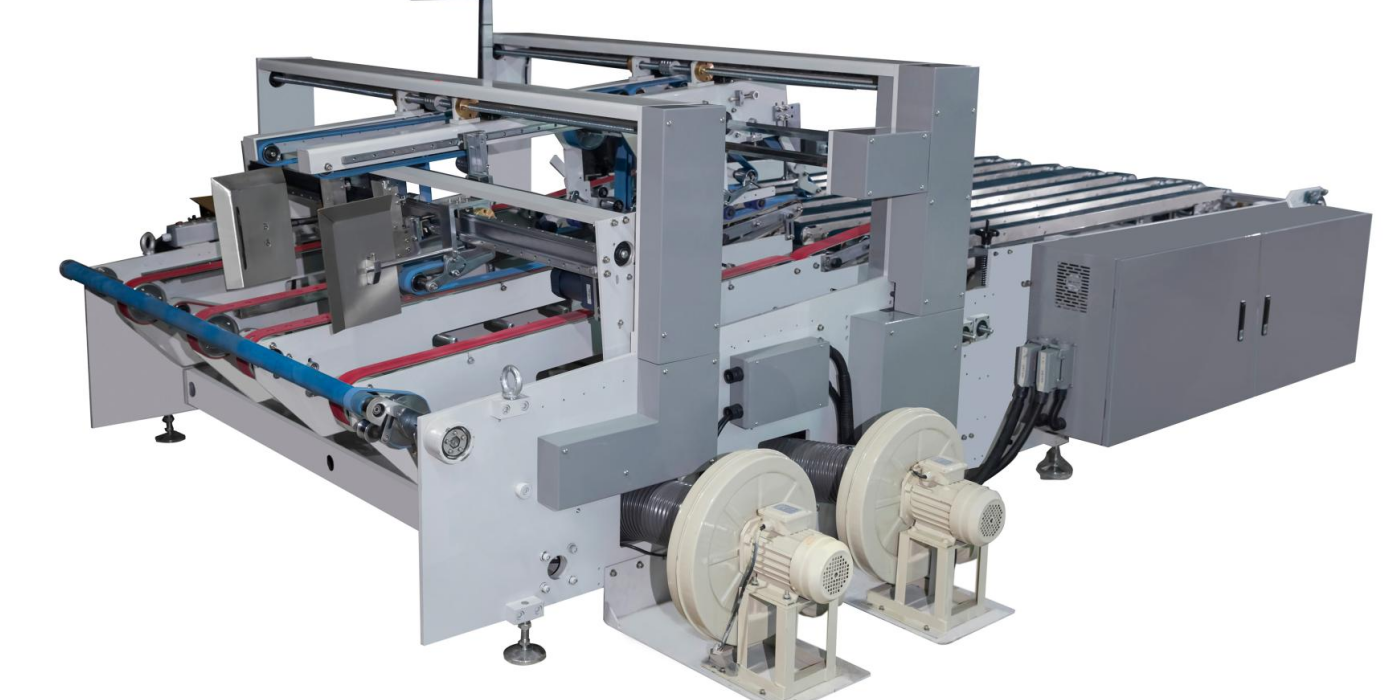

The Mega series is specifically engineered for heavy-duty corrugated board applications. Reinforced and thickened side walls enhance overall machine rigidity, effectively reducing vibration during high-speed operation and supporting long-term stability. At the delivery section, the MegaFold 1450 PC can be flexibly connected with downstream systems according to different box styles and packing requirements. The flip banding machine (COLT) is suitable for straight-line boxes, crash lock bottom boxes, and 4 & 6 corner boxes, providing flipping, counting, and banding in one integrated process. The stacker counting and batching system focuses on relatively regular straight-line boxes, enabling stable counting, batching, and stacking.
You can also watch the related video to see the MegaFold 1450 PC running in a real production environment.
