Universal Folder Gluer for Corrugated and Cardboard 1450

TECHNOFOLD

1450

TECHNOFOLD 1450 – AC
Without pre-folding section.
Suitable for straight-line, crash-lock bottom & double wall boxes.

TECHNOFOLD 1450 – PC
Suitable for straight-line, crash-lock bottom & double wall boxes.

TECHNOFOLD 1450 – SL
Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.

TECHNOFOLD 1450 is designed for heavy packaging applications, providing reliable and powerful performance for medium and large-sized carton production.

Featuring a robust structure and advanced upper-driven carrier system, TECHNOFOLD 1450 ensures precise folding and closing performance for micro-flute and corrugated carton applications. Its strong conveying capability makes it especially suitable for demanding packaging environments requiring stable processing of larger and heavier carton formats.

Based on the proven TECHNOFOLD ES series, the new generation TECHNOFOLD 1450 incorporates optimized engineering solutions with enhanced flexibility, faster accessory changeover and efficient setup. These improvements help converters achieve higher productivity while maintaining consistent folding and gluing quality.

Combining strength, flexibility and reliability, TECHNOFOLD 1450 provides an efficient folder-gluer solution for the heavy packaging market.

DOWNLOAD

OVERVIEW
COMPOSITION
SPECIFICATIONS
BOX TYPE
SCHEME
PERIPHERALS

At a glance

FAST PROCESSING
300 m/min
WIDE RANGE
Max. 1450 mm
MATERIALS
Cardboard, Corrugated board
FLEXIBLE & EASY TO OPERATE
CERTIFICATED

Product demo

TECHNOFOLD 1450

Composition

1 Feeder section
2 Side register section
3 Pre-folding section
4 Crash lock bottom section
5 Lower gluing section
6 Folding and Closing section
7 Trombone section
8 Conveyor section
9 4&6 corner device

1
Feeder section

- Driven independently by servo motor. - Adjustable electronic pile vibrator. - Lateral feed gates fully adjustable to the width of the blank. - 10 feeder belts. - Three adjustable front feed knives.
2
Side register section

- Independent section with an unparallel lower carrier that guides the box to a parallel handrail, allowing for perfect blank alignment.
3
Pre-folding section

- Left-hand glue flap pre-folder up to 180º. - Third crease line pre-folder up to 135º. - 1st and 3rd crease openers.
4
Crash lock bottom section

- 3 sets of upper and lower carriers. - Complete set of folding hooks and helixes to fold the front flaps of the blank smoothly and accurately. - Set of accessories for "B" lock bottom.
5
Lower gluing section

- Left lower gluing tank. - Easy to remove and clean. - Optional electronic upper gluing system by guns, upon request.
6
Folding and Closing section

- Smooth and accurate folding of 2nd and 4th creases. - Outer folding belts adjustable up to 180º with variable speed. - Three upper and lower carriers. - 25 mm lower and 30 mm outer belts on left and right carriers. - Width-wise adjustable heavy-duty compression rollers.
7

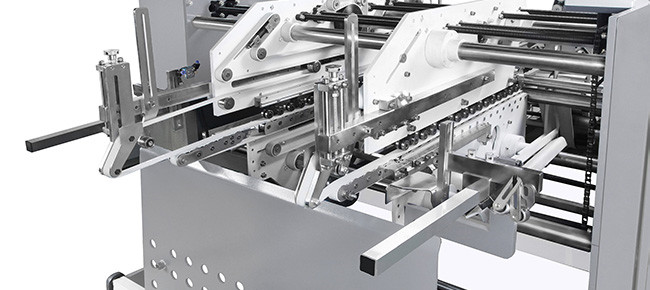

Trombone section

- Upper and lower drive mechanism for length adjustment. - Equipped with automatic belt tension-adjusting system. - Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well-aligned flow. - Electronic counter and "Kicker" for marking packets.
8
Conveyor section

- Independent and motorized press section. - Manual and automatic mode (follow-up). - Upper section moves back and forward, allowing for different box length. - 7.4 meters total length with 4.0 meters effective pressure length. - Pneumatic pressure adjustment.
9
4&6 corner device

Back folding device: - Suitable to fold rear 4 & 6-corner flaps or panels and many other designs. - Motorized and untimed electronic back folding system with intelligent servo motor technology. - Easy to set up through the main touch screen.
